Chicken Cooling Freezer Cold Room with Automatic Control Temperature Setting

Guangzhou Icesource Refrigeration Equipment Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Guangzhou Icesource Refrigeration Equipment Co., LTD
City: Guangzhou
Province/State: Guangdong
Country/Region: China
Tel: 86--13660478497
Contact Person:
Miss Emily Yan

Chicken Cooling Freezer Cold Room with Automatic Control Temperature Setting

Brand Name : CBFI
Model Number : VCR-380
Certification : ISO14001 CE
Place of Origin : Guang Dong of China
MOQ : 1 Sets
Price : USD 3000-10000/ Set
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 50 Sets Per Month
Delivery Time : 30 days
Packaging Details : Wooden Case
Refrigeration Parts : Danfoss Castel Emerson
Control System : Thermostat System
Cold Room Lamp : Moistureproof Lamp
Door Size : Customization
Cold room door : Sliding door/Swing door
Control system : full automatic system
Panel : PU Insulation 50-200mm Thickness
Compressor : Germany BITZER America Copeland
Temperature : It can be adjustable
Power : 380V/50HZ/3P 220V/60HZ/3P...
Function : Cooling Storage Keeping Fresh
Contact Now

movable cold room

Chicken Cooling Freezer Cold Room Automatic Control Temperature Setting

Main components and features

1. The ice storage is made up of reinforced base plate, sidewall plate, end wall plate and top plate. There is a 100mm-thick insulated layer of polyurethane foam inside the plate.

2. An air cooling system is applied inside to keep the temperature of the ice storage bin at -8, an ideal temperature to keep ice dry and crispy.

3. Cold storage's major component selects the well-known brands, which ensure the machine with reasonable configuration, steady movement, good insulation function, and low power consumption.

4. The electrical control section of the cold room is fully automatically controlled by computer, LCD inner temperature of the cold room, available machine time, defrost time, time of fan delay, alarming indicate and various technology parameter. It is easy and convenient to operate.

5. Cold Room Panel:50mm, 100mm, 120mm, 150mm, 200mm thickness PU insulation.

6. Cold Room Panel Steel Material : Color steel, galvanisted steel, sainless steel...

ThicknessSuitable temperature
50mm5 degree or above
70mm-5 degree or above
100mm-28 degree or above
150mm-35 degree or above
200mm-45 degree or above

Freezer Cold Room Details

1. Flexible for construction different sizesmade of modular fabrication with polyurethane insulation with different dimensions.

2. allows for easy assembly and disassembly

3. Panel thickness: 50mm-200mm (for -45 to 5 Celsius degree).

4. According to different temperature range, cold room can be divided degree Celsius cold room

5. Cold Room Temperature can be adjustable

Product Description

Cold room application

Cold Room are widely used in food process factory, dairy factory, pharmaceutical factory, chemical factory,fruit and vegetable warehouse, egg storage, hotel, supermarket, hospital, blood bank, troops

and laboratory.

complete cold room

Mobile Cold Storage Features

1). Polyurethane insulation board design , the main steel structure to faciliate consturction.

2). Portable hinged and sliding doors, and out of cold storage more convenient , easy to operate.

3). Water defrosting evaporator defrost faster , save operating cost.

4).Cold rooms door with anit-shock protection , an increase of reliability.

5). Room temperature -45 to 15 degree.
movable cold room.jpg

Main Components and Features of Cold Room:

1.Flexible for construction different sizesmade of modular fabrication with polyurethane insulation

with different dimensions.

2.allows for easy assembly and disassembly

3.Panel thickness: 50mm-200mm (for -45 to 5 Celsius degree).

4.According to different temperature range, cold room can be divided degree Celsius cold room

movable cold room.JPG

cold room about 60 cubic meter.JPG

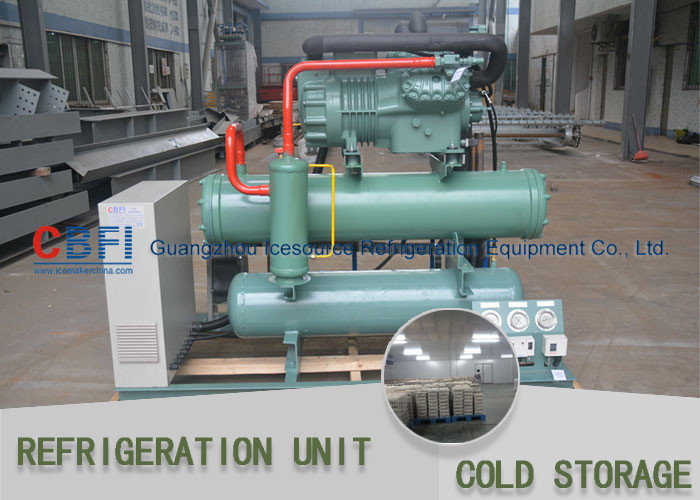

Cold storage refrigeration unit

1) Condensing unit: Bitzer, Copeland, Maneurop, Frashcold..

2) Insulation Panel : PU, EPS

3)Other accessories:world-famous brands, like Danfoss, Castle, Electrical controller LG ...

movable cold room

movable cold room.jpg

Germany brand Bitzer compressor condensing unit

Cold storage panels

Cold Room insulation panel use 100% polyurethane insulation panel, density about

40~45kg/m3, with gasket,flame retardant , panel thickness : 50mm ~200mm, standard

width of panel is 960mm

Cold storage equipment.jpg

movable cold room.jpg

Cold storage door

1).Swing door and sliding door for choice.

2).Swing door : manual opended , automatic,etc.

3).Door board made with special pressing technology PU material.

4).Door frame : color steel or stainless steel.

5).Surface material : color steel or stainless steel with protecting film.


Cold storage control box

ust a start press, you can control the system automatically, without man-made operation.

When the room temperature cools to lower limit of the set temperature, the compressor

and air cooled will stop to work automatically; when the room temperature rises to uper

limit of the set temperature , the compressor and air cooled will start to work automatically.

cold storage equipment.jpg

Cold storage air cooler

movable cold room.JPG

Celling air cooler used to cool the air down inside the cold room

containerized cold room

movable cold room.JPG

Packaging & Shipping

Cold storage Packing

cold storage equipment.jpg

Our Services

Our service:

1. We have a large after-sale service team. All the technicians are very experienced, they

always go to different countries to serve customers like you.

2. The warranty of the whole machine is 12 months.

If you are intrested in our cold room, please tell me which dimension you need.

We are definitely to contact you within 2 days after getting your inquiry.

movable cold room

Company Information

Company information:

1. Our factory is located in Guangzhou city, China. It is near the Baiyun International

Airportand it is closed two famous port of south China, HuangpuPortand NanshaPort.

It is convenient for load and transport goods and for customers to come to visit our


2. We started in researching, developing and selling all kinds of ice machines since 2004.

3. Our main products are: cube ice machine, tube ice machine, block ice machine, plate

ice machine, flake ice machine and cold room.

4.We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand,

Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico,

Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon,

Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……

Welcome more and more customers come to us, visit our factory and give us suggestion,

let us make progress, thanks!



1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.

2. The deposit is 30%, after we receive your deposit, we will start to produce the machine

for you. The balance 70% should be paid before shipping.

3. The delivery time normally is 30 days after receive the deposit.

4. If necessary, we will arrange the shipping for you.

The storage temperature is displayed and controlled by the digital thermostat with which reliable storage is provided; modular cold room is a new product with various standard sizes. Its storage capacity may be specified or selected according to the requirements of the customer.

The precise control and adjustment of temperature enables the customers to achieve the utmost efficiency and benefits.
